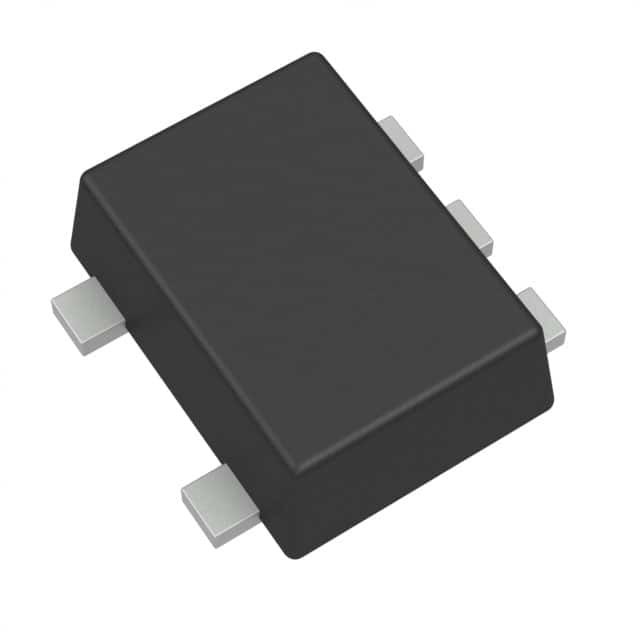

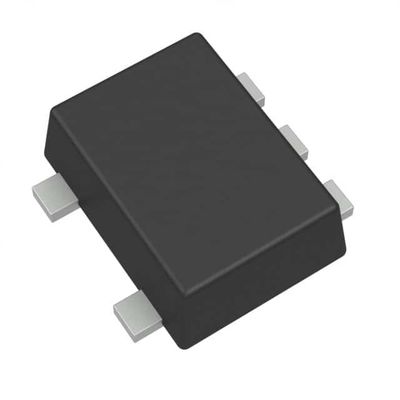

SN74LVC1G14DRLR / SOT-5X3-5 / Inverters
This single Schmitt-trigger inverter is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G14 device contains one inverter and performs the Boolean function Y = A. The device functions as an independent inverter with Schmitttrigger inputs, so the device has different input threshold levels for positive-going (VT+) and negativegoing (VT– ) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals.
NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Inverters |
| RoHS: | Details |
| 1 Circuit | |
| LVC | |
| Inverting | |
| 5.5 V | |
| 1.65 V | |
| - 40 C | |
| + 125 C | |
| SMD/SMT | |
| SOT-5X3-5 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Function: | Inverter Schmitt Trigger |
| High Level Output Current: | - 32 mA |
| Input Type: | Schmitt Trigger |
| Low Level Output Current: | 32 mA |
| Operating Supply Voltage: | 1.8 V, 2.5 V, 3.3 V, 5 V |
| Operating Temperature Range: | - 40 C to + 125 C |
| Product Type: | Inverters |
| Series: | SN74LVC1G14 |
| Factory Pack Quantity: | 4000 |
| Subcategory: | Logic ICs |
| Unit Weight: | 0.000099 oz |
