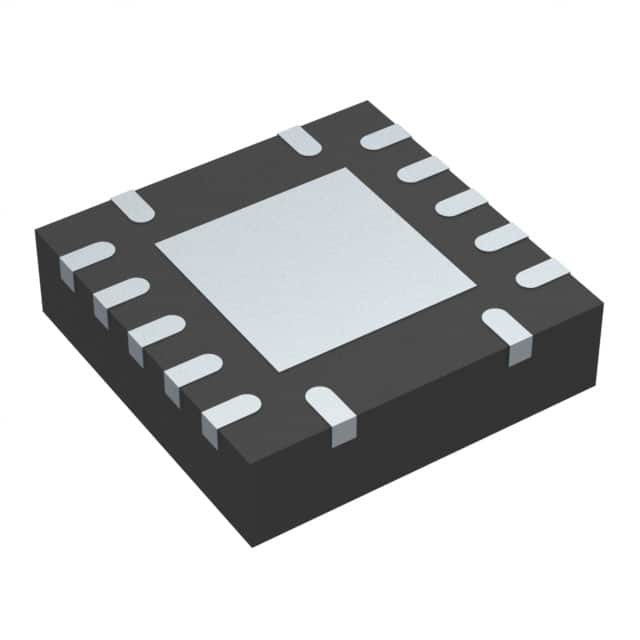

SN74LV125ATRGYR / VQFN-14 / Buffers & Line Drivers
The SN74LV125AT is a quadruple bus buffer gate. This device features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
This device is fully specified for partial-power-down applications using I off . The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Buffers & Line Drivers |
| 4 Input | |
| 4 Output | |
| Non-Inverting | |
| - 16 mA | |
| 16 mA | |
| 2 uA | |
| 5.5 V | |
| 4.5 V | |
| 20 uA | |
| - 40 C | |
| + 85 C | |
| SMD/SMT | |
| VQFN-14 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Function: | Buffer/Line Driver |
| Height: | 0.9 mm |
| Input Signal Type: | Single-Ended |
| Length: | 3.5 mm |
| Logic Family: | LV |
| Logic Type: | CMOS |
| Moisture Sensitive: | Yes |
| Number of Channels: | 4 |
| Operating Supply Voltage: | 4.5 V to 5.5 V |
| Output Type: | 3-State |
| Product Type: | Buffers & Line Drivers |
| Propagation Delay Time: | 7.5 ns at 5 V |
| Series: | SN74LV125AT |
| Factory Pack Quantity: | 3000 |
| Subcategory: | Logic ICs |
| Supply Current - Max: | 2 uA |
| Technology: | CMOS |
| Width: | 3.5 mm |
| Unit Weight: | 0.001136 oz |
