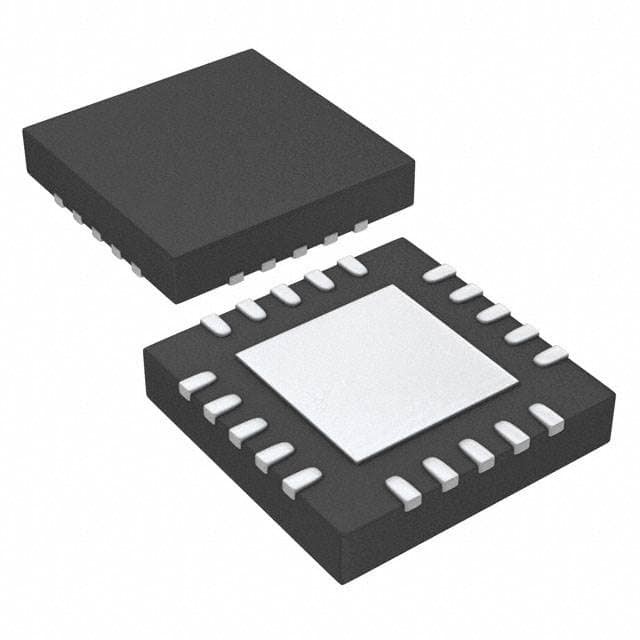

TPS7A8400ARGRR / VQFN-20 / Power Management ICs
The TPS7A84A is a low-noise, low-dropout linear regulator (LDO) capable of sourcing 3 A with only 180-mV of maximum dropout. The device is offered in two output voltage ranges. The TPS7A8400A output voltage is pin-programmable from 0.8 V to 3.95 V, with a 50-mV resolution, and adjustable from 0.8 V to 5.15 V using an external resistor divider. The TPS7A8401A output voltage is pin-programmable from 0.5 V to 2.075 V, with a 25-mV resolution, and adjustable from 0.5 V to 5.15 V using an external resistor divider.
The combination of low-noise, high-PSRR, and high output-current capability makes the TPS7A84A ideal to power noise-sensitive components such as those found in high-speed communications, video, medical, or test and measurement applications. The high performance of the TPS7A84A limits power-supplygenerated phase noise and clock jitter, making this device ideal for powering high-performance serializer and deserializer (SerDes), analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and RF components. Specifically, RF amplifiers benefit from the high-performance and > 5-V output capability of the device.
For digital loads [such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs)] requiring low-input voltage, low-output (LILO) voltage operation, the exceptional accuracy (0.75% over line, load, and temperature), remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A84A ensure optimal system performance.
The versatility of the TPS7A84A makes the device a component of choice for many demanding applications.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | LDO Voltage Regulators |
| SMD/SMT | |
| VQFN-20 | |
| 3 A | |
| 1 Output | |
| Positive | |
| 1.1 V | |
| 6.5 V | |
| 25 dB | |
| Adjustable | |
| - 40 C | |
| + 125 C | |
| 110 mV | |
| TPS7A84A | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Development Kit: | TPS7A84EVM-753 |
| Dropout Voltage - Max: | 180 mV |
| Ib - Input Bias Current: | 2.4 mA |
| Line Regulation: | 0.03 mV/V |
| Load Regulation: | 0.04 mV/A |
| Moisture Sensitive: | Yes |
| Operating Temperature Range: | - 4 |
| Output Voltage Range: | 800 mV to 5.15 V |
| Pd - Power Dissipation: | 0.9 W |
| Product: | LDO Voltage Regulators |
| Product Type: | LDO Voltage Regulators |
| Reference Voltage: | 0.8 V |
| Factory Pack Quantity: | 3000 |
| Subcategory: | PMIC - Power Management ICs |
| Type: | Low Noise LDO Regulators |
| Voltage Regulation Accuracy: | 0.75 % |
| Unit Weight: | 0.001429 oz |
