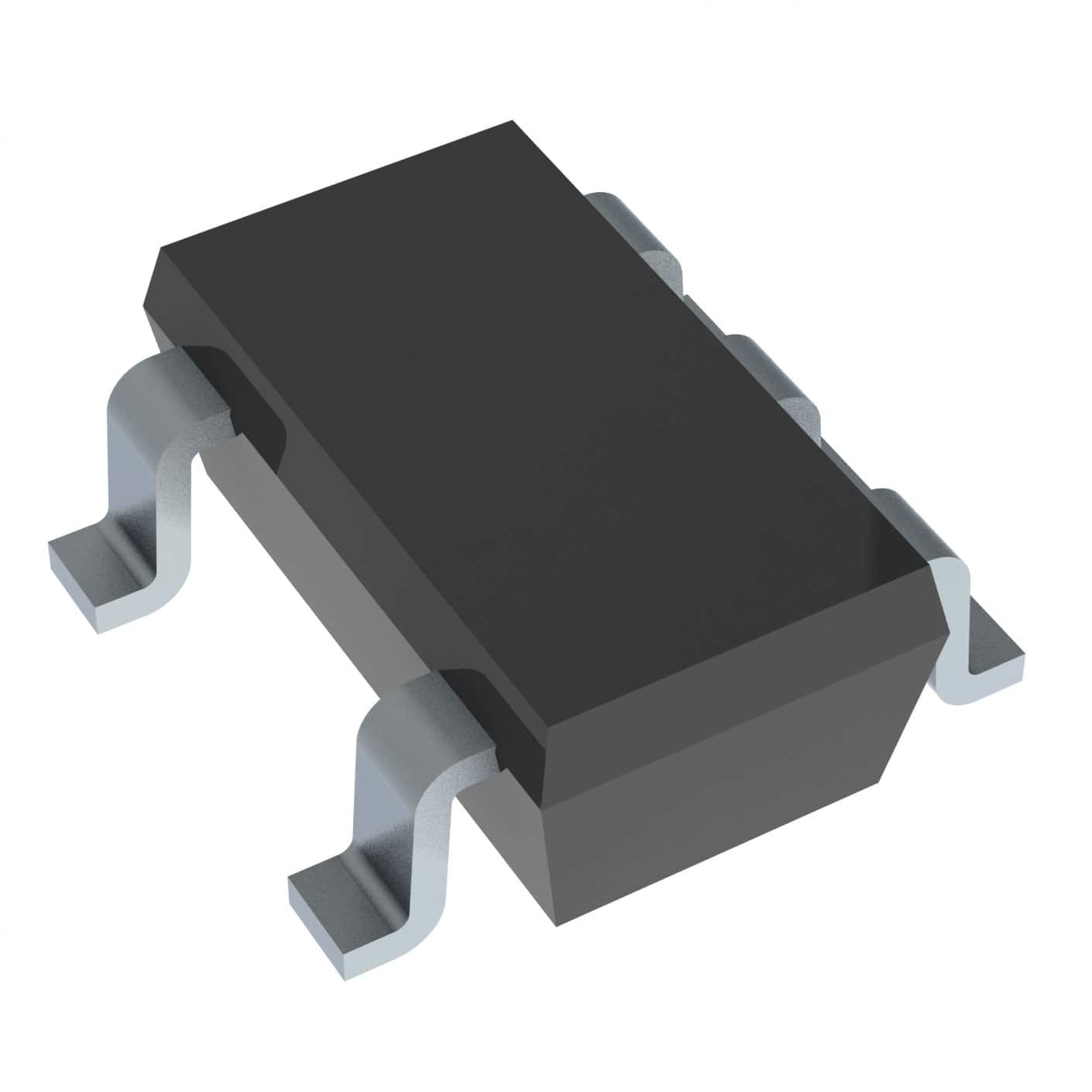

SN6501DBVR / SOT-23-5 / Power Management ICs
The SN6501 is a monolithic oscillator/power-driver, specifically designed for small form factor, isolated power supplies in isolated interface applications. The device drives a low-profile, center-tapped transformer primary from a 3.3-V or 5-V DC power supply. The secondary can be wound to provide any isolated voltage based on transformer turns ratio.
The SN6501 consists of an oscillator followed by a gate drive circuit that provides the complementary output signals to drive the ground referenced Nchannel power switches. The internal logic ensures break-before-make action between the two switches.
The SN6501 is available in a small SOT-23 (5) package, and is specified for operation at temperatures from –40°C to 125°C.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Power Management Specialized - PMIC |
| SN6501 | |
| Converters | |
| SMD/SMT | |
| SOT-23-5 | |
| 500 mA | |
| 3 V to 5.5 V | |
| 0 V to 11 V | |
| - 40 C | |
| + 125 C | |
| 300 uA | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Input Voltage, Max: | 5.5 V |
| Input Voltage, Min: | 3 V |
| Maximum Output Voltage: | 11 V |
| Product Type: | Power Management Specialized - PMIC |
| Factory Pack Quantity: | 3000 |
| Subcategory: | PMIC - Power Management ICs |
| Unit Weight: | 0.001411 oz |
