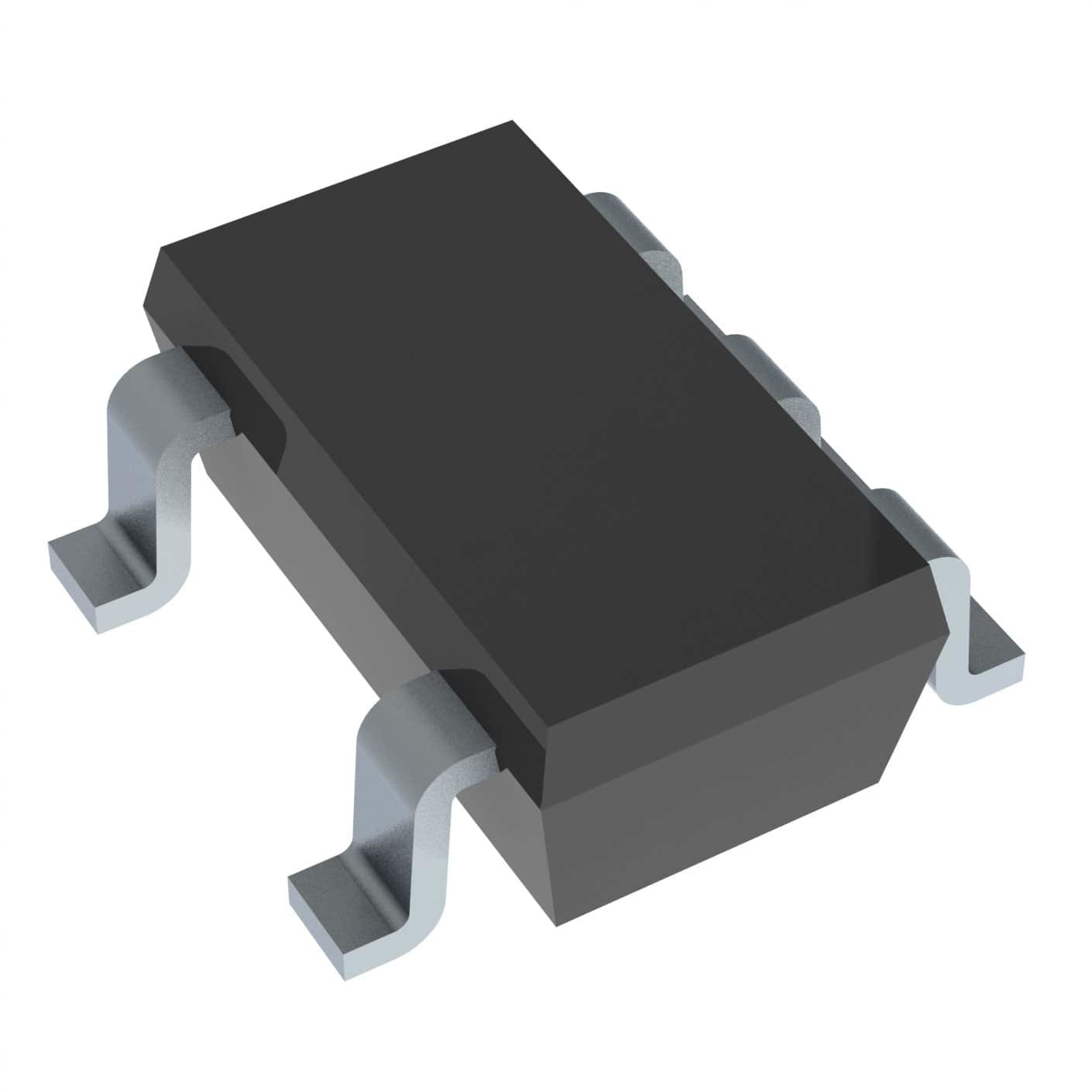

CLVC1G125QDBVRQ1 / SOT-23-5 / Logic ICs
This bus buffer gate is designed for 1.65-V to 5.5-V VCC operation.
The SN74LVC1G125-Q1 device is a single line driver with a 3-state output. The output is disabled when the output-enable ( OE) input is high.
The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range.
The SN74LVC1G125-Q1 device is available in a variety of packages including the small DRY package with a body size of 1.45 mm × 1.00 mm.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Buffers & Line Drivers |
| 1 Input | |
| 1 Output | |
| Non-Inverting | |
| - 24 mA | |
| 24 mA | |
| 10 uA | |
| 5.5 V | |
| 1.65 V | |
| 10 uA | |
| - 40 C | |
| + 125 C | |
| SMD/SMT | |
| SOT-23-5 | |
| AEC-Q100 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Function: | Buffer/Line Driver |
| Height: | 1.15 mm |
| Input Signal Type: | Single-Ended |
| Length: | 2.9 mm |
| Logic Family: | LVC |
| Logic Type: | True |
| Number of Channels: | 1 Channel |
| Operating Supply Voltage: | 1.8 V, 2.5 V, 3.3 V, 5 V |
| Output Type: | 3-State |
| Product Type: | Buffers & Line Drivers |
| Propagation Delay Time: | 5.1 ns at 3.3 V, 4.1 ns at 5 V |
| Series: | SN74LVC1G125-Q1 |
| Factory Pack Quantity: | 3000 |
| Subcategory: | Logic ICs |
| Supply Current - Max: | 10 uA |
| Technology: | CMOS |
| Width: | 1.6 mm |
| Unit Weight: | 0.000222 oz |
