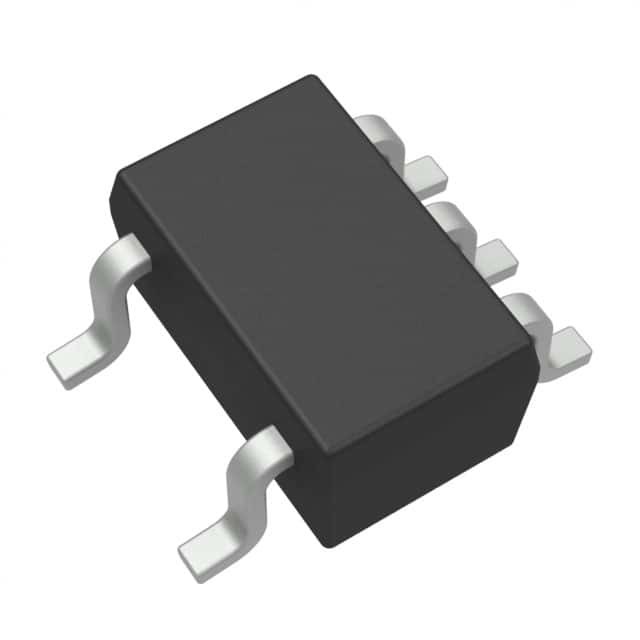

SN74AHC1G14DCKR / SC70-5 / Logic ICs
The SN74AHC1G14 device is a single inverter gate. The device performs the Boolean function Y = A.
The device functions as an independent inverter gate, but because of the Schmitt action, gates may have different input threshold levels for positive- (VT+) and negative-going (VT−) signals.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Inverters |
| 1 Circuit | |
| 74AHC | |
| Inverting | |
| 5.5 V | |
| 2 V | |
| - 40 C | |
| + 125 C | |
| SMD/SMT | |
| SC70-5 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Function: | Single Schmitt Trigger |
| High Level Output Current: | - 8 mA |
| Input Type: | Schmitt Trigger |
| Low Level Output Current: | 8 mA |
| Operating Supply Voltage: | 2 V to 5.5 V |
| Operating Temperature Range: | - 40 C to + 125 C |
| Product Type: | Inverters |
| Series: | SN74AHC1G14 |
| Factory Pack Quantity: | 3000 |
| Subcategory: | Logic ICs |
| Unit Weight: | 0.000705 oz |
