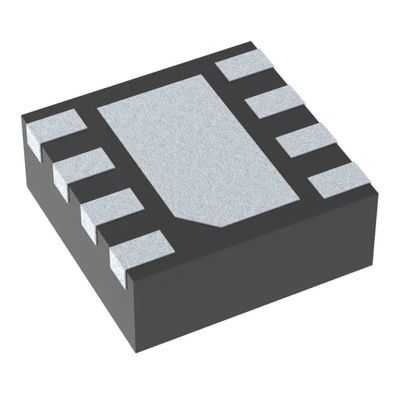

TPS62125DSGR / Switching Voltage Regulators 3V-17V, 300mA Buck Converter
Features
• Wide Input Voltage Range 3 V to 17 V
• Input Supply Voltage Supervisor (SVS) With Adjustable Threshold and Hysteresis Consuming Typical 6-µA Quiescent Current
• Wide Output Voltage Range 1.2 V to 10 V
• Typical 13-µA Quiescent Current
• 350-nA Typical Shutdown Current
• Seamless Power Save Mode Transition
• DCS-Control™ Scheme
• Low Output Ripple Voltage
• Up to 1-MHz Switching Frequency
• Highest Efficiency over Wide VIN and VOUT Range
• Pin to Pin Compatible with TPS62160/70
• 100% Duty Cycle Mode
• Power Good Open Drain Output
• Output Discharge Function
• Small 2-mm × 2-mm 8-pin WSON Package
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |
| WSON-8 | |
| Buck | |
| 1.2 V to 10 V | |
| 300 mA | |
| 1 Output | |
| 3 V | |
| 17 V | |
| 1 mA | |
| 1 MHz | |
| - 40 C | |
| + 85 C | |
| TPS62125 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Development Kit: | TPS62125EVM-044 |
| Input Voltage: | 3 V to 17 V |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 13 uA |
| Product: | Voltage Regulators |
| Product Type: | Switching Voltage Regulators |
| Factory Pack Quantity: | 3000 |
| Subcategory: | PMIC - Power Management ICs |
| Type: | Voltage Converter |
| Unit Weight: | 0.000384 oz |
