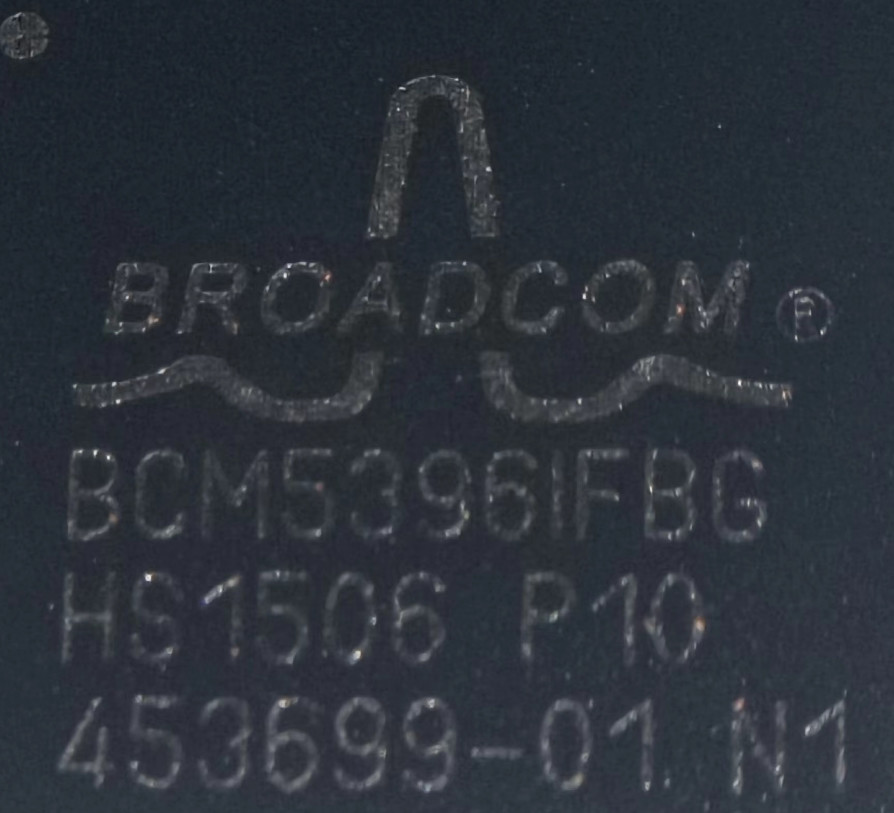

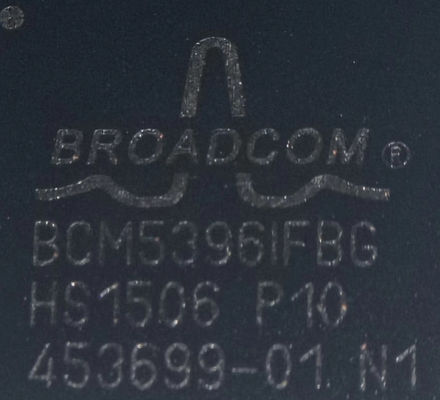

BCM5396IFBG Ethernet Switch Controller Ic

BCM5396IFBG / BGA / Ethernet ICs

The BCM5396 is a 16-port Gigabit Ethernet (GbE) switch integrated with 16 1.25G SerDes/SGMII port interfaces for connecting to external Gigabit PHYs or fiber modules. The BCM5396 provides the lowestpower and cost GbE functionality to the desktop switching solution or WebSmart application.

The BCM5396 is a highly integrated solution, combining all of the functions of a high-speed switch system, including packet buffer, Media Access Controllers (MACs), address management, and a non-blocking switch controller into a single monolithic 0.13 µm CMOS device. The BCM5396 complies with the IEEE 802.3, 802.3u, 802.3ab, and 802.3x specifications, including the MAC control PAUSE frame and auto-negotiation subsections, providing compatibility with all industry-standard Ethernet, Fast Ethernet, and GbE devices.

The BCM5396 device provides integrated 1.25G SerDes, reducing board footprint requirements. The 16 ports have SGMII interfaces for connecting with external GbE transceivers.
