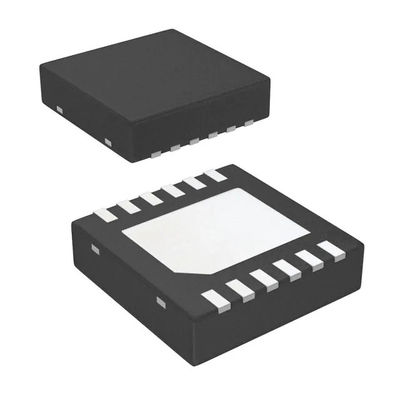

LP38798SD-ADJ/NOPB / LDO Voltage Regulators 800mA Ultra-Lo Noise Hi PSRR LDO
The LP38798-ADJ is a high-performance, low-noise LDO that can supply up to 800 mA output current. Designed to meet the requirements of sensitive RF/Analog circuitry, the LP38798-ADJ implements a novel linear topology on an advanced CMOS process to deliver ultra-low output noise and high PSRR at switching power supply frequencies.
The LP38798SD-ADJ is stable with both ceramic and tantalum output capacitors and requires a minimum output capacitance of only 1 µF for stability. The LP38798-ADJ can operate over a wide input voltage range (3 V to 20 V) making it well suited for many post-regulation applications.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | LDO Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |
| WSON-12 | |
| 1.5 V to 5 V | |
| 800 mA | |
| 1 Output | |
| Positive | |
| 1.5 mA | |
| 3 V | |
| 20 V | |
| 110 dB | |
| Adjustable | |
| - 40 C | |
| + 125 C | |
| 200 mV | |
| LP38798 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Development Kit: | LP38798EVM |
| Dropout Voltage - Max: | 420 mV |
| Line Regulation: | 0.005 % |
| Load Regulation: | - 0.2 % |
| Operating Supply Current: | 1.4 mA |
| Operating Temperature Range: | - 4 |
| Product: | Linear Regulators |
| Product Type: | LDO Voltage Regulators |
| Factory Pack Quantity: | 1000 |
| Subcategory: | PMIC - Power Management ICs |
| Type: | High Performance Linear Regulator |
| Unit Weight: | 0.001369 oz |
