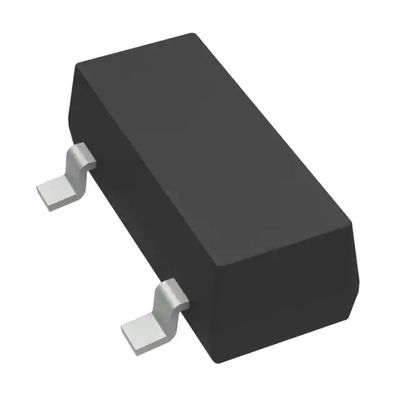

REF1112AIDBZR / Voltage References 1uA SOT23-3 10ppm/C Shunt
The REF1112 device is a two-terminal shunt reference designed for power- and space-sensitive applications. The REF1112 features an operating current of 1 μA in a SOT23-3 package and is an improved, lower power solution for designs currently using voltage references in larger packages, such as the REF1004 and LT1004.
The REF1112 is specified from –40°C to +85°C with operation extending from –40°C to +125°C. The REF1112 complements other 1-μA components from Texas Instruments including the OPA349 and TLV240x low-power operational amplifiers, and the TLV349x micropower voltage comparator.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Voltage References |
| RoHS: | Details |
| SMD/SMT | |
| SOT-23-3 | |
| Shunt References | |
| 1.25 V | |
| 0.2 % | |
| 50 PPM / C | |
| - | |
| 5 mA | |
| - 40 C | |
| + 85 C | |
| REF1112 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Accuracy: | 100 PPM/mA |
| Brand: | Texas Instruments |
| Description/Function: | 1UA, SOT23-3 10PPM/C SHUNT VOLTAGE REFERENCE |
| Height: | 1 mm |
| Length: | 2.92 mm |
| Product: | Voltage References |
| Product Type: | Voltage References |
| Shunt Current - Min: | 1.2 uA |
|
Factory Pack Quantity: |
3000 |
| Subcategory: | PMIC - Power Management ICs |
| Topology: | Shunt References |
| Width: | 1.3 mm |
| Unit Weight: | 0.000282 oz |
