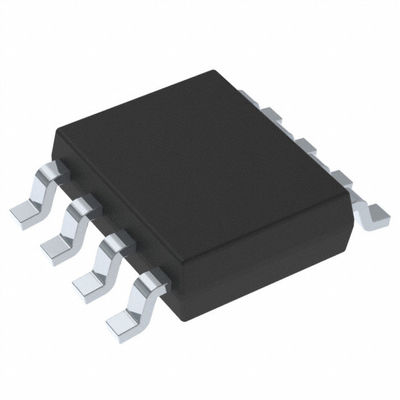

TPS54340BDDAR / Switching Voltage Regulators 42-V input, 3.5-A
The TPS54340B is a 42-V, 3.5-A, step-down regulator with an integrated high side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no-load supply current to 146 μA. Shutdown supply current is reduced to 2 μA when the enable pin is pulled low.
Undervoltage lockout is internally set at 4.3 V but can be increased using the enable pin. The output voltage start-up ramp is internally controlled to provide a controlled start-up and eliminate overshoot.
A wide switching-frequency range allows either efficiency or external component size to be optimized. Frequency foldback and thermal shutdown protect internal and external components during an overload condition.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |
| SO-PowerPad-8 | |
| Buck | |
| 800 mV to 41.1 V | |
| 3.5 A | |
| 1 Output | |
| 4.5 V | |
| 42 V | |
| 146 uA | |
| 100 kHz to 2.5 MHz | |
| - 40 C | |
| + 150 C | |
|
TPS54340B |
|
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Input Voltage: | 4.5 V to 42 V |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 146 uA |
| Product Type: | Switching Voltage Regulators |
| Shutdown: | Shutdown |
|
Factory Pack Quantity: |
2500 |
| Subcategory: | PMIC - Power Management ICs |
| Supply Voltage - Min: | 4.5 V |
| Type: | DC/DC Converter |
| Unit Weight: | 0.003457 oz |
