General Description
The KSZ8873MLL/FLL/RLL are highly integrated 3-port switch-on-a-chip ICs in the industry’s smallest footprint. They are designed to enable a new generation of low port count, cost-sensitive, and power efficient 10/100 Mbps switch systems. Low power consumption, advanced power management, and sophisticated QoS features (e.g., IPv6 priority classification support) make these devices ideal for IPTV, IP-STB, VoIP, automotive, and industrial applications.
The KSZ8873 family is designed to support the GREEN requirement in today’s switch systems. Advanced power management schemes include hardware power down, software power down, per port power down, and the energy detect mode that shuts downs the transceiver when a port is idle.
KSZ8873MLL/FLL/RLL also offer a bypass mode. In this mode, the processor connected to the switch through the MII interface can be shut down without impacting the normal switch operation.
The configurations provided by the KSZ8873 family enables the flexibility to meet requirements of different applications:
• KSZ8873MLL: Two 10/100BASE-T/TX transceivers and one MII interface.
• KSZ8873RLL: Two 10/100BASE-T/TX transceivers and one RMII interface.
• KSZ8873FLL: Two 100BASE-FX transceivers and one MII interface.

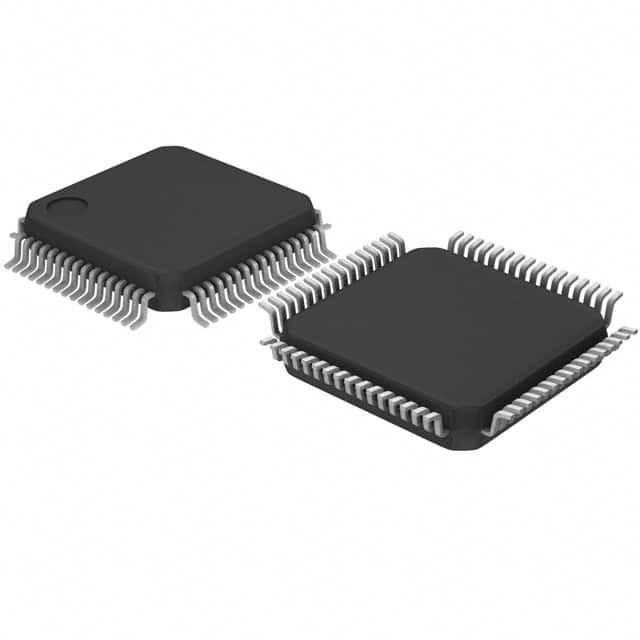

The devices are available in RoHS-compliant 64-pin LQFP packages. Industrial-grade and qualified AEC-Q100 Automotive-grade versions are also available.
| Product Attribute | Attribute Value |
|---|---|
| Microchip | |
| Product Category: | Ethernet ICs |
| SMD/SMT | |
| LQFP-64 | |
| Ethernet Switches | |
| 10BASE-T, 100BASE-TX | |
| 3 Transceiver | |
| 10 Mb/s, 100 Mb/s | |
| I2C, MDI-X, MII, MIIM, RMII, SMI, SPI | |
| 3.3 V | |
| 0 C | |
| + 70 C | |
| KSZ8873 | |
| Tray | |
| Brand: | Microchip Technology / Atmel |
| Duplex: | Full Duplex, Half Duplex |
| Height: | 1.4 mm |
| Length: | 10 mm |
| Moisture Sensitive: | Yes |
| Product Type: | Ethernet ICs |
| Factory Pack Quantity: | 160 |
| Subcategory: | Communication & Networking ICs |
| Supply Current - Max: | 86 mA, 115 mA |
| Supply Voltage - Max: | 3.465 V |
| Supply Voltage - Min: | 1.69 V |
| Width: | 10 mm |
| Unit Weight: | 0.012088 oz |
