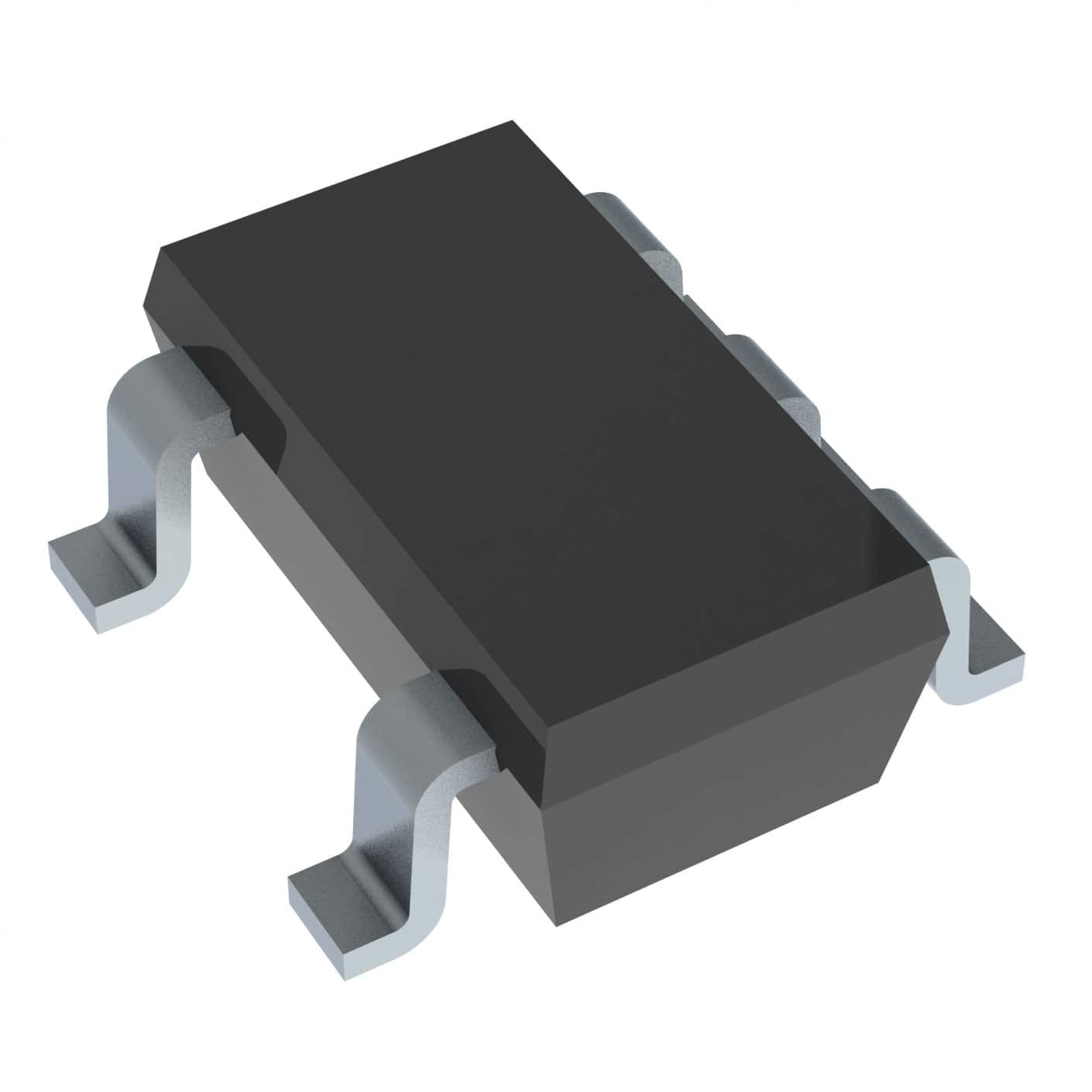

TPS70925DBVT / SOT-23-5 / Power Management ICs
Description
The TPS709 series of linear regulators are ultralow, quiescent current devices designed for powersensitive applications. A precision band-gap and error amplifier provides 2% accuracy over temperature. Quiescent current of only 1 µA makes these devices ideal solutions for battery-powered, alwayson systems that require very little idle-state power dissipation. These devices have thermal-shutdown, current-limit, and reverse-current protections for added safety.
Shutdown mode is enabled by pulling the EN pin low. The shutdown current in this mode goes down to 150 nA, typical.
The TPS709 series is available in WSON-6 and SOT-23-5 packages.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | LDO Voltage Regulators |
| SMD/SMT | |
| SOT-23-5 | |
| 2.5 V | |
| 150 mA | |
| 1 Output | |
| Positive | |
| 1 uA | |
| 2.7 V | |
| 30 V | |
| 80 dB | |
| Fixed | |
| - 40 C | |
| + 125 C | |
| 300 mV | |
| TPS709 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Line Regulation: | 3 mV |
| Load Regulation: | 20 mV |
| Operating Supply Current: | 1 uA |
| Operating Temperature Range: | - 4 |
| Product Type: | LDO Voltage Regulators |
| Factory Pack Quantity: | 250 |
| Subcategory: | PMIC - Power Management ICs |
| Unit Weight: | 0.000222 oz |
