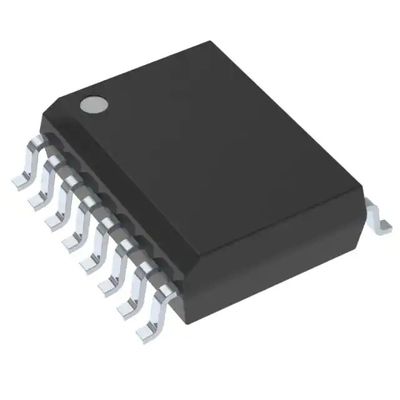

LM22674MRE-ADJ/NOPB / Switching Voltage Regulators 500MA,STEP-DOWN VLTG REG
· Wide Input Voltage Range: 4.5 V to 42 V
· Internally Compensated Voltage Mode Control
· Stable with Low ESR Ceramic Capacitors
· 200 mΩ N-Channel MOSFET
· Output Voltage Options:
-ADJ (Outputs as Low as 1.285 V)
-5.0 (Output Fixed to 5 V)
· +1.5% Feedback Reference Accuracy
· Switching Freguency of 500 kHz
· -40°C to 125°c Operating Junction Temperature Range
· Precision Enable Pin
· Integrated Boot-Strap Diode
· Integrated Soft-Start
· Fully WEBENCH Enabled
· LM22674-Q1 is an Automotive Grade Product
that is AEC-Q100 Grade 1 Qualified (40°C to
+125°c Operating Junction Temperature)
· SO PowerPAD (Exposed Pad)
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |
| SO-PowerPad-8 | |
| Buck | |
| Adjustable | |
| 500 mA | |
| 1 Output | |
| 4.5 V | |
| 42 V | |
| 3.4 mA | |
| 500 kHz | |
| - 40 C | |
| + 125 C | |
| LM22674 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Input Voltage: | 4.5 V to 42 V |
| Load Regulation: | 90 % |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 3.4 mA |
| Product Type: | Switching Voltage Regulators |
| Shutdown: | Shutdown |
| Factory Pack Quantity: | 250 |
| Subcategory: | PMIC - Power Management ICs |
| Supply Voltage - Min: | 4.5 V |
| Tradename: |
SIMPLE SWITCHER |
| Type: | Step Down Voltage Regulator |
| Unit Weight: | 0.003330 oz |
