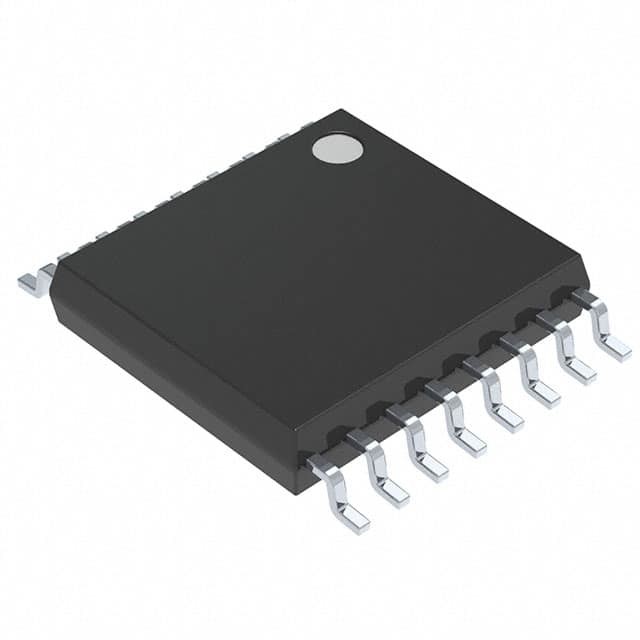

LM63625DQPWPRQ1 / HTSSOP-16 / Power Management ICs
Features
• AEC-Q100-qualified for automotive applications
– Device temperature grade 1: –40°C to +125°C
ambient operating temperature
• Functional Safety-Capable
– Documentation available to aid functional safety system design
• Supports automotive system requirements
– Input voltage range: 3.5 V to 36 V
– Short 50-ns minimum on time
– Good EMI performance
Pseudo-random spread spectrum
Compatible with CISPR 25
– 23-µA low operating quiescent current
– –40°C to +150°C junction temperature range
• High design flexibility
– Pin selectable VOUT: 3.3 V, 5 V, adjustable 1 V to 20 V
– Pin compatible with the LM63610 and LM63635 (1 A, 3.25 A)
– Pin selectable frequency: 400 kHz, 2.1 MHz, adjustable 250 kHz to 2200 kHz
– Pin selectable FPWM, auto, sync modes
– TSSOP: thermally enhanced package
– WSON: for space-constrained applications
• Small solution size
– As small as 10 mm × 10 mm for 2.5 A, 2.2 MHz with WSON package
– Highly integrated solution
– Low component count
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| SMD/SMT | |
| HTSSOP-16 | |
| Buck | |
| 1 V to 20 V | |
| 2.5 A | |
| 1 Output | |
| 3.5 V | |
| 36 V | |
| 23 uA | |
| 250 kHz to 2.2 MHz | |
| - 40 C | |
| + 125 C | |
| AEC-Q100 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Input Voltage: | 3.5 V to 36 V |
| Moisture Sensitive: | Yes |
| Product Type: | Switching Voltage Regulators |
| Shutdown: | Shutdown |
| Factory Pack Quantity: | 2000 |
| Subcategory: | PMIC - Power Management ICs |
| Supply Voltage - Min: | 2.7 V |
| Type: | Synchronous |
| Unit Weight: | 0.004233 oz |
