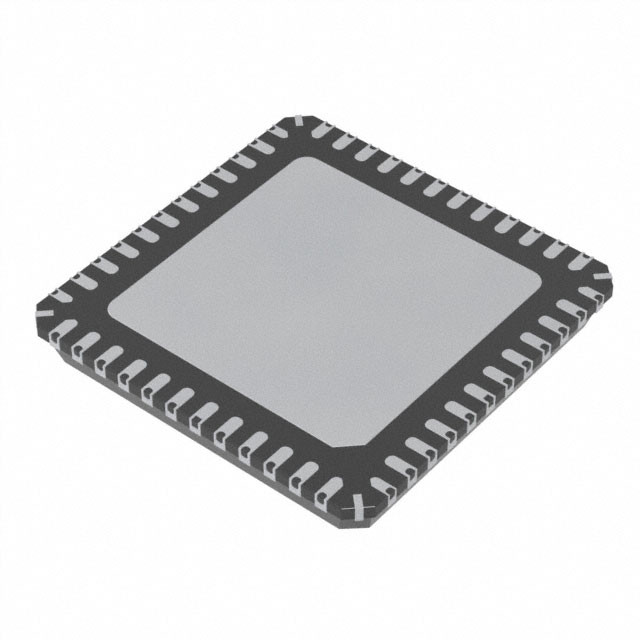

TLF35584QVVS2 / SMD/SMT / Infineon / Special Purpose / Reel

TLF35584QVVS2 / SMD/SMT / Infineon / Special Purpose / Reel

• High efficient power management integrated circuit (PMIC) • Serial step up and step down pre regulator for wide input voltage range from 3.0 to 40 V with full performance and low over all power loss • Low drop post regulator 5.0 V/200 mA for communication supply (QCO) • Low drop post regulator 5.0 V/600 mA (TLF35584QxVS1) or 3.3 V/600 mA (TLF35584QxVS2) for µC supply (QUC) • Voltage reference 5.0 V ±1% for ADC supply, 150 mA current capability (QVR) • Two trackers for sensor supply following voltage reference 150 mA current capability each (QT1 and QT2) • Standby regulator 5.0 V/10 mA (TLF35584QxVS1) or 3.3 V/10 mA (TLF35584QxVS2) (QST) • Provides enable, sync out signal and voltage monitoring for an optional external post regulator for core supply • Independent voltage monitoring block and error pin monitoring • Configurable window and functional watchdog • Safe State Control with two safe state signals with programmable delay • 16-bit SPI, interrupt and reset function • PRO-SIL™ Features: - ISO 26262 compliant supporting up to ASIL-D - Safety Documentation (Safety Manual & Safety Analysis Summary Report) • Green Product (RoHS compliant)
