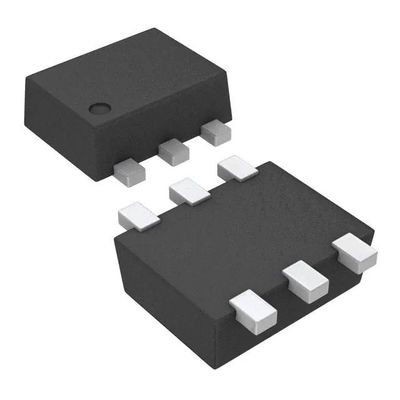

TLV62568PDRLR / Switching Voltage Regulators 2.5V-5.5V input
The TLV62568 device is a synchronous step-down buck DC-DC converter optimized for high efficiency and compact solution size. The device integrates switches capable of delivering an output current up to 1 A.
At medium to heavy loads, the device operates in pulse width modulation (PWM) mode with 1.5-MHz switching frequency. At light load, the device automatically enters Power Save Mode (PSM) to maintain high efficiency over the entire load current range. In shutdown, the current consumption is reduced to less than 2 μA.
The TLV62568 provides an adjustable output voltage via an external resistor divider. An internal soft start circuit limits the inrush current during startup. Other features like over current protection, thermal shutdown protection and power good are built-in. The device is available in a SOT23 and SOT563 package.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |
| SOT-5X3 | |
| Buck | |
| 600 mV to 5.5 V | |
| 1 A | |
| 1 Output | |
| 2.5 V | |
| 5.5 V | |
| 35 uA | |
| 1.5 MHz | |
| - 40 C | |
| + 125 C | |
| TLV62568 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Development Kit: | TLV62568EVM-789 |
| Input Voltage: | 2.5 V to 5.5 V |
| Product Type: | Switching Voltage Regulators |
| Shutdown: | Shutdown |
|
Factory Pack Quantity: |
3000 |
| Subcategory: | PMIC - Power Management ICs |
| Supply Voltage - Min: | 2.5 V |
| Type: | Synchronous Buck Converter |
| Unit Weight: | 0.000106 oz |
