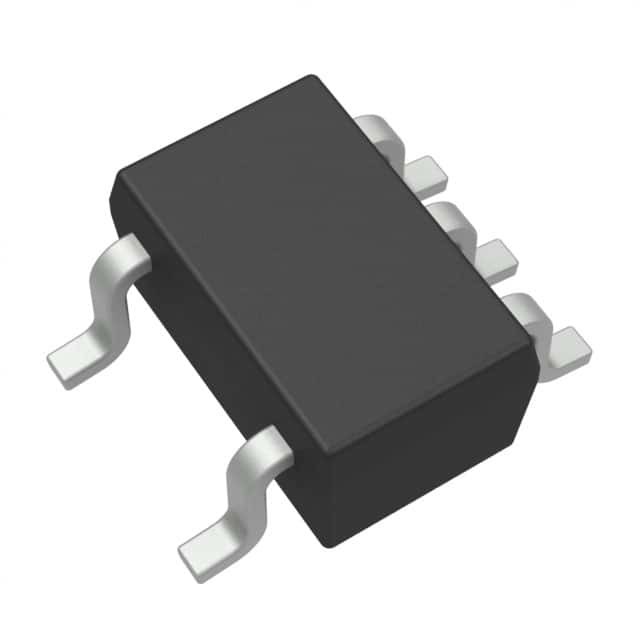

SN74LVC1G04DCKR / SC70-5 / Logic Integrated Circuits
• Available in the Ultra-Small 0.64-mm2Package (DPW) with 0.5-mm Pitch
• Supports 5-V Vcc Operation
• Inputs Accept Voltages up to 5.5 V AllowingTranslation to Vcc
• Max tpd of 3.3 ns at 3.3-V
• Low Power Consumption, 10-PA Max lcc
• ±24-mA Output Drive at 3.3-V
• loff Supports Live-lnsertion, Partial-Power-DovMode, and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mAPer JESD 78, Class Il
• ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Inverters |
| 1 Circuit | |
| 74LVC | |
| Inverting | |
| 5.5 V | |
| 1.65 V | |
| - 40 C | |
| + 125 C | |
| SMD/SMT | |
| SC70-5 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Function: | Inverter |
| High Level Output Current: | - 32 mA |
| Input Type: | CMOS, TTL |
| Low Level Output Current: | 32 mA |
| Operating Supply Voltage: | 1.65 V to 5.5 V |
| Operating Temperature Range: | - 40 C to + 125 C |
| Product Type: | Inverters |
| Series: | SN74LVC1G04 |
| Factory Pack Quantity: | 3000 |
| Subcategory: | Logic ICs |
| Unit Weight: | 0.000705 oz |
