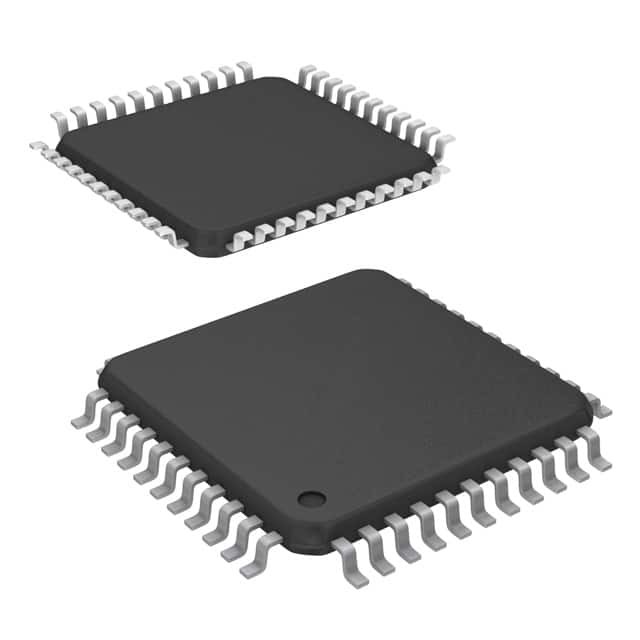

EPM3064ATC44-10N / TQFP-44 / Programmable Logic IC
■ High–performance, low–cost CMOS EEPROM–based programmable logic devices (PLDs) built on a MAX® architecture (see Table 1)
■ 3.3-V in-system programmability (ISP) through the built–in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability – ISP circuitry compliant with IEEE Std. 1532
■ Built–in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990
■ Enhanced ISP features: – Enhanced ISP algorithm for faster programming – ISP_Done bit to ensure complete programming – Pull-up resistor on I/O pins during in–system programming
■ High–density PLDs ranging from 600 to 10,000 usable gates
■ 4.5–ns pin–to–pin logic delays with counter frequencies of up to 227.3 MHz
■ MultiVoltTM I/O interface enabling the device core to run at 3.3 V, while I/O pins are compatible with 5.0–V, 3.3–V, and 2.5–V logic levels
■ Pin counts ranging from 44 to 256 in a variety of thin quad flat pack (TQFP), plastic quad flat pack (PQFP), plastic J–lead chip carrier (PLCC), and FineLine BGATM packages
■ Hot–socketing support
■ Programmable interconnect array (PIA) continuous routing structure for fast, predictable performance
■ Industrial temperature range
| Product Attribute | Attribute Value |
|---|---|
| Intel | |
| Product Category: | CPLD - Complex Programmable Logic Devices |
| EPM3064 | |
| SMD/SMT | |
| TQFP-44 | |
| 3.3 V | |
| 64 | |
| 34 I/O | |
| 0 C | |
| + 70 C | |
| 222.2 MHz | |
| 4.5 ns | |
| Tray | |
| Brand: | Intel / Altera |
| Memory Type: | EEPROM |
| Moisture Sensitive: | Yes |
| Number of Gates: | 1250 |
| Number of Logic Array Blocks - LABs: | 4 |
| Product Type: | CPLD - Complex Programmable Logic Devices |
| Factory Pack Quantity: | 160 |
| Subcategory: | Programmable Logic ICs |
| Supply Voltage - Max: | 3.6 V |
| Supply Voltage - Min: | 3 V |
| Tradename: | MAX 3000A |
| Part # Aliases: | 972165 |
