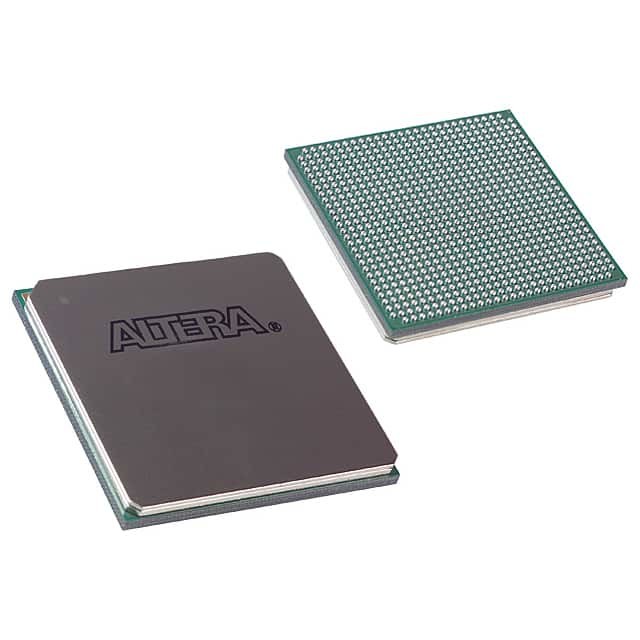

EP3C120F780C8NAE / BGA-780 / PCB Connectors
Cyclone® III device family offers a unique combination of high functionality, low power and low cost. Based on Taiwan Semiconductor Manufacturing Company (TSMC) low-power (LP) process technology, silicon optimizations and software features to minimize power consumption, Cyclone III device family provides the ideal solution for your high-volume, low-power, and cost-sensitive applications. To address the unique design needs, Cyclone III device family offers the following two variants:
■ Cyclone III—lowest power, high functionality with the lowest cost
■ Cyclone III LS—lowest power FPGAs with security
With densities ranging from about 5,000 to 200,000 logic elements (LEs) and 0.5 Megabits (Mb) to 8 Mb of memory for less than ¼ watt of static power consumption, Cyclone III device family makes it easier for you to meet your power budget. Cyclone III LS devices are the first to implement a suite of security features at the silicon, software, and intellectual property (IP) level on a low-power and high-functionality FPGA platform. This suite of security features protects the IP from tampering, reverse engineering and cloning. In addition, Cyclone III LS devices support design separation which enables you to introduce redundancy in a single chip to reduce size, weight, and power of your application.
| Product Attribute | Attribute Value |
|---|---|
| Intel | |
| Product Category: | FPGA - Field Programmable Gate Array |
| Shipping Restrictions: |
This product may require additional documentation to export from the United States.
|
| Cyclone III EP3C120 | |
| 531 I/O | |
| 1.15 V | |
| 1.25 V | |
| 0 C | |
| + 70 C | |
| SMD/SMT | |
| BGA-780 | |
| Tray | |
| Brand: | Intel / Altera |
| Maximum Operating Frequency: | 315 MHz |
| Moisture Sensitive: | Yes |
| Number of Logic Array Blocks - LABs: | 7443 LAB |
| Operating Supply Voltage: | 1.15 V to 1.25 V |
| Product Type: | FPGA - Field Programmable Gate Array |
| Factory Pack Quantity: | 36 |
| Subcategory: | Programmable Logic ICs |
| Total Memory: | 3981312 bit |
| Tradename: | Cyclone III |
| Unit Weight: | 0.419760 oz |
