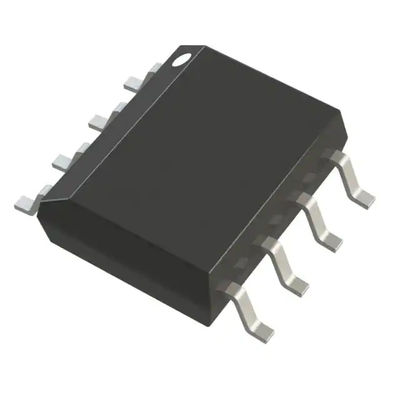

ADR4525BRZ-R7 / SOIC-8 / Power Management ICs
The ADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ ADR4550 devices are high precision, low power, low noise voltage references featuring ±0.02% B, C, and D grade maximum initial error, excellent temperature stability, and low output noise.
This family of voltage references uses an innovative core topology to achieve high accuracy while offering industry-leading temperature stability and noise performance. The low, thermally induced output voltage hysteresis and low long-term output voltage drift of the devices also improve system accuracy over time and temperature variations.
A maximum operating current of 950 μA and a maximum low dropout voltage of 300 mV allow the devices to function very well in portable equipment.
The ADR4520/ADR4525/ADR4530/ADR4533/ADR4540/ ADR4550 series of references are each provided in an 8-lead SOIC and are available in a wide range of output voltages, all of which are specified over the extended industrial temperature range of −40°C to +125°C.
| Product Attribute | Attribute Value |
|---|---|
| Analog Devices Inc. | |
| Product Category: | Voltage References |
| SMD/SMT | |
| SOIC-8 | |
| Series Precision References | |
| 2.5 V | |
| 0.02 % | |
| 2 PPM / C | |
| 15 V | |
| 10 mA | |
| - 40 C | |
| + 125 C | |
| ADR4525 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Accuracy: | 120 ppm/mA |
| Brand: | Analog Devices |
| Height: | 1.5 mm |
| Input Voltage: | 3 V to 15 V |
| Length: | 5 mm |
| Load Regulation: | 120 ppm/mA |
| Operating Supply Current: | 700 uA |
| Output Current: | 10 mA |
| Product: | Voltage References |
| Product Type: | Voltage References |
| Shutdown: | No Shutdown |
| Factory Pack Quantity: | 1000 |
| Subcategory: | PMIC - Power Management ICs |
| Topology: | Series References |
| Width: | 4 mm |
| Unit Weight: | 0.019048 oz |
