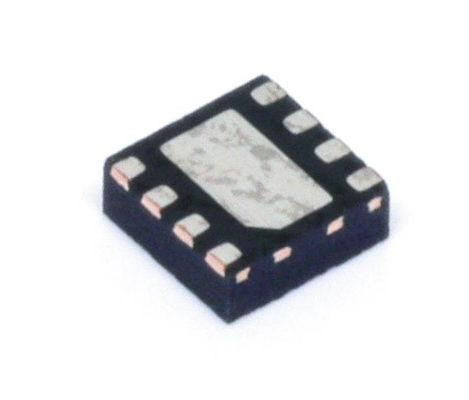

LP2951-50DR / LDO Voltage Regulators Adj Micropwr Vltg Reg
The LP2950 and LP2951 devices are bipolar.low- dropout voltage regulators that can accommodate a wide input supply-voltage range of up to 30 V. The easy-to-use, 3-pin LP2950 is available in fixed-output voltages of 5 V, 3.3 V, and 3 V. However, the 8-pin LP2951 is able to output either a fixed or adjustable outout from the same device. By tving the ourpur and SENSE pins together, and the FEEDBACK and Vtap pins together, the LP2951 outputs a fixed 5 V,3.3 v,or 3v(depending on the version). Alternatively, by leaving the SENsE and VTap pins open and connecting FEEDBACK to an external resistor divider, the output can be set to any value between 1.235 Vto 30 V.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | LDO Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |
| SOIC-8 | |
| 5 V | |
| 100 mA | |
| 1 Output | |
| Positive | |
| 75 uA | |
| 2 V | |
| 30 V | |
| Adjustable, Fixed | |
| - 40 C | |
| + 125 C | |
| 380 mV | |
| LP2951-50 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Height: | 1.58 mm |
| Length: | 4.9 mm |
| Line Regulation: | 0.2 % / V |
| Load Regulation: | 0.2 % |
| Operating Temperature Range: | - 4 |
| Product Type: | LDO Voltage Regulators |
| Factory Pack Quantity: | 2500 |
| Subcategory: | PMIC - Power Management ICs |
| Width: | 3.91 mm |
| Unit Weight: | 0.005997 oz |
