Name: SN74LVC1G07QDBVRQ1 Octal Line Driver
Brand: HAOXIN HK ELECTRONIC TECHNOLOGY CO. LIMITED
SKU: SN74LVC1G07QDBVRQ1
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Quiescent Current: 10 UA

Mounting Style: SMD/SMT

Qualification: AEC-Q100

Operating Temperature Range: - 40 C To + 125 C

ECCN: EAR99

Packaging Details: Standard/New/Original

Highlight:

SN74LVC1G07QDBVRQ1 Octal Line Driver

Automotive Applications Octal Line Driver

Basic Infomation

Place of Origin: Malaysia

Brand Name: TI

Model Number: SN74LVC1G07QDBVRQ1

Payment & Shipping Terms

Packaging Details: SOT23-5

Delivery Time: in stock

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: contact us

Gallery

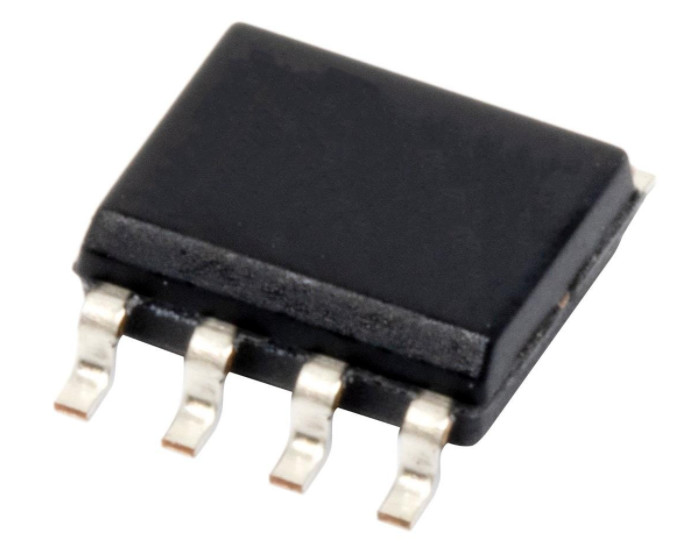

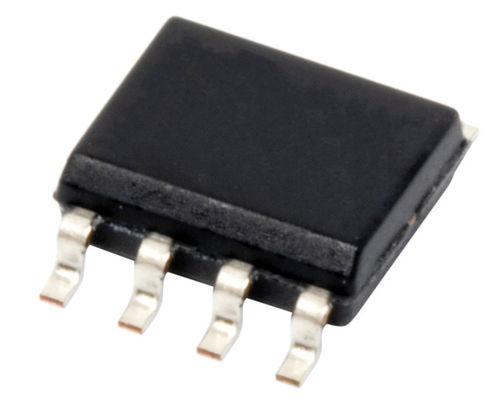

SN74LVC1G07QDBVRQ1 Octal Line Driver

Product Description

SN74LVC1G07QDBVRQ1 / Buffers & Line Drivers AC Sgl Buffer/Driver

The SN74LVC1G07-Q1 is a single channel opendrain buffer/driver qualified for automotive applications. This is designed for 1.65-V to 5.5-V VCC
operation.
The output of the SN74LVC1G07-Q1 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or activehigh wired-AND functions. The maximum sink current
is 32 mA.
This device is fully specified for partial-power-down applications using Ioff.The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Product Attribute	Attribute Value
Manufacturer:	Texas Instruments
Product Category:	Buffers & Line Drivers
RoHS:	Details
Number of Input Lines:	1 Input
Number of Output Lines:	1 Output
Polarity:	Non-Inverting
High Level Output Current:	-
Low Level Output Current:	32 mA
Quiescent Current:	10 uA
Supply Voltage - Max:	5.5 V
Supply Voltage - Min:	1.65 V
Operating Supply Current:	10 uA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	SMD/SMT
Package / Case:	SOT-23-5
Qualification:	AEC-Q100
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Logic Type:	True
Operating Temperature Range:	- 40 C to + 125 C
Product Type:	Buffers & Line Drivers
Series:	SN74LVC1G07-Q1
Factory Pack Quantity:	3000
Subcategory:	Logic ICs
Unit Weight:	0.000222 oz
