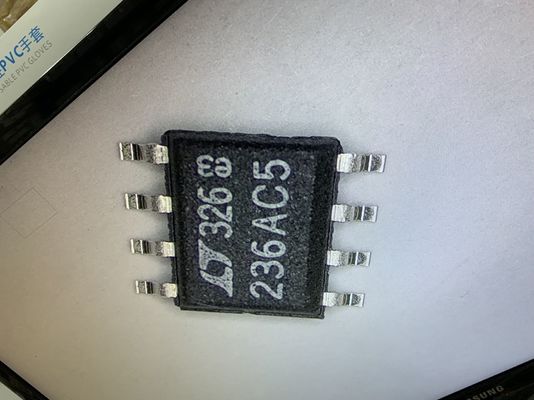

LT1236ACS8-5#TRPBF / V-Ref Precision 5V 10mA 8-Pin SOIC N T/R / SOP8

LT1236ACS8-5#TRPBF / V-Ref Precision 5V 10mA 8-Pin SOIC N T/R / SOP8

The LT®1236 is a precision reference that combines ultra-low drift and noise with excellent long-term stability andhigh output accuracy. The reference output will bothsource and sink up to 10mA and is almost totally immuneto input voltage variations. Two voltages are available: 5Vand 10V. The 10V version can be used as a shunt regulator(two-terminal zener) with the same precision characteris-tics as the three-terminal connection. Special care hasbeen taken to minimize thermal regulation effects andtemperature induced hysteresis.

The LT1236 combines both superior accuracy and tem-perature coefficient specifications without the use of highpower, on-chip heaters. The LT1236 references are basedon a buried zener diode structure which eliminates noiseand stability problems with surface breakdown devices.Further, a subsurface zener exhibits better temperaturedrift and time stability than even the best band-gapreferences．
