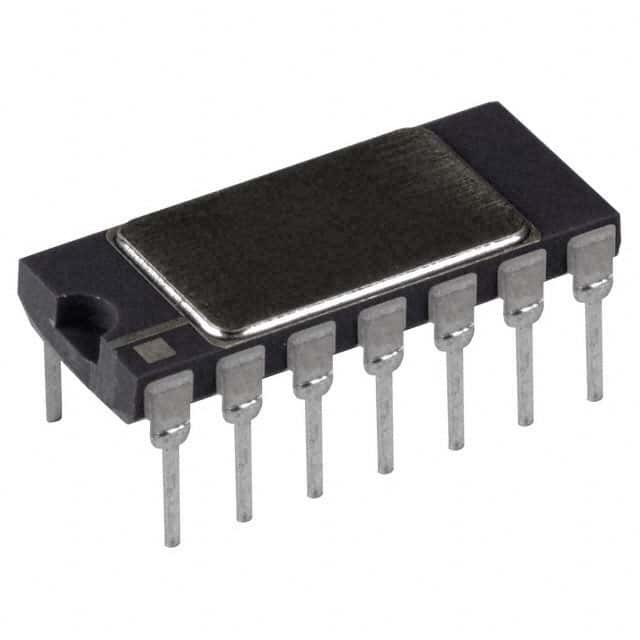

AD734SQ/883B / CDIP-14 / Multipliers / Dividers
The AD734 is an accurate high speed, four-quadrant analog multiplier that is pin compatible with the industry-standard AD534 and provides the transfer function W = XY/U. The AD734 provides a low impedance voltage output with a full power (20 V p-p) bandwidth of 10 MHz. Total static error (scaling, offsets, and nonlinearities combined) is 0.1% of full scale. Distortion is typically less than −80 dBc and guaranteed. The low capacitance X, Y, and Z inputs are fully differential. In most applications, no external components are required to define the function.
The internal scaling (denominator) voltage, U, is 10 V, derived from a buried-Zener voltage reference. A new feature provides the option of substituting an external denominator voltage, allowing the use of the AD734 as a two-quadrant divider with a 1000:1 denominator range and a signal bandwidth that remains 10 MHz to a gain of 20 dB, 2 MHz at a gain of 40 dB, and 200 kHz at a gain of 60 dB, for a gain-bandwidth product of 200 MHz.
The advanced performance of the AD734 is achieved by a combination of new circuit techniques, the use of a high speed complementary bipolar process, and a novel approach to laser trimming based on ac signals rather than the customary dc methods. The wide bandwidth (>40 MHz) of the AD734’s input stages and the 200 MHz gain-bandwidth product of the multiplier core allow the AD734 to be used as a low distortion demodulator with input frequencies as high as 40 MHz as long as the desired output frequency is less than 10 MHz.
The AD734AQ and AD734BQ are specified for the industrial temperature range of −40°C to +85°C and come in a 14-lead CERDIP and a 14-lead PDIP package. The AD734SQ/883B, available processed to MIL-STD-883B for the military range of −55°C to +125°C, is available in a 14-lead CERDIP.
| Product Attribute | Attribute Value |
|---|---|
| Analog Devices Inc. | |
| Product Category: | Multipliers / Dividers |
| 16.5 V | |
| + 125 C | |
| - 55 C | |
| Through Hole | |
| CDIP-14 | |
| Tube | |
| Brand: | Analog Devices |
| Height: | 3.56 mm (Max) |
| Input Voltage: | 12.5 V |
| Length: | 19.94 mm (Max) |
| Operating Supply Current: | 12 mA |
| Product Type: | Multipliers / Dividers |
| Series: | AD734 |
| Factory Pack Quantity: | 25 |
| Subcategory: | Logic ICs |
| Width: | 7.87 mm (Max) |
| Unit Weight: | 0.042329 oz |
