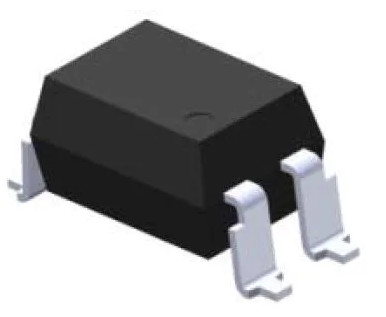

LTV-816S-TA1 Lite-On SMD/SMT PDIP-4 Gull Wing
1.1 Features Current transfer ratio ( CTR : MIN. 50% at IF = 5mA, VCE = 5V ) High input-output isolation voltage ( Viso = 5,000Vrms ) Response time ( tr : TYP. 4µs at VCE = 2V, IC = 2mA, RL = 100Ω ) Dual-in-line package : LTV-816 : 1-channel type LTV-826 : 2-channel type LTV-846 : 4-channel type Wide lead spacing package : LTV-816M : 1-channel type LTV-826M : 2-channel type LTV-846M : 4-channel type Surface mounting package : LTV-816S : 1-channel type LTV-826S : 2-channel type LTV-846S : 4-channel type Tape and reel packaging : LTV-816S-TA : 1-channel type LTV-816S-TA1 : 1-channel type LTV-816S-TP : 1-channel type LTV-816S-TP1 : 1-channel type LTV-826S-TA : 2-channel type LTV-826S-TA1 : 2-channel type Safety approval UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) CSA CA5A CQC GB4943.1-2011/ GB8898-2011 (meet Altitude up to 5000m) Nordic Safety ( FIMKO/NEMKO/SEMKO/DEMKO) BSI RoHS Compliance All materials be used in device are followed EU RoHS directive (No.2002/95/EC). ESD pass HBM 8000V/MM2000V MSL class1
| Product Attribute | Attribute Value |
|---|---|
| Lite-On | |
| Product Category: | Transistor Output Optocouplers |
| RoHS: | Details |
| SMD/SMT | |
| PDIP-4 Gull Wing | |
| 1 Channel | |
| 5000 Vrms | |
| NPN Phototransistor | |
| 50 mA | |
| 1.4 V | |
| 80 V | |
| 50 mA | |
| 200 mV | |
| 18 us | |
| 18 us | |
| 6 V | |
| 200 mW | |
| - 55 C | |
| + 110 C | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Lite-On |
| Current Transfer Ratio: | 50 % |
| Height: | 3.5 mm |
| Length: | 4.6 mm |
| Product Type: | Transistor Output Optocouplers |
| 1000 | |
| Subcategory: | Optocouplers |
| Width: | 6.5 mm |
| Unit Weight: | 0.009171 oz |
