TPS51200DRCT / VSON-10 / Power Management Specialized - PMIC
The TPS51200 device is a sink and source double data rate (DDR) termination regulator specifically designed for low input voltage, low-cost, low-noise systems where space is a key consideration.
The TPS51200 maintains a fast transient response and requires a minimum output capacitance of only 20 μF. The TPS51200 supports a remote sensing function and all power requirements for DDR, DDR2, DDR3, DDR3L, Low-Power DDR3 and DDR4 VTT bus termination. In addition, the TPS51200 provides an open-drain PGOOD signal to monitor the output regulation and an EN signal that can be used to discharge VTT during S3 (suspend to RAM) for DDR applications.

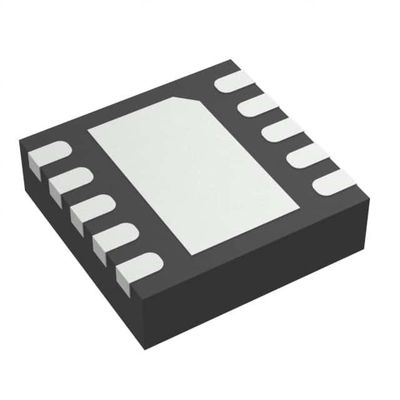

The TPS51200 is available in the thermally efficient 10-pin VSON thermal pad package, and is rated both Green and Pb-free. It is specified from –40°C to +85°C.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Power Management Specialized - PMIC |
| TPS51200 | |
| Voltage Regulator, Multiple Outputs | |
| SMD/SMT | |
| VSON-10 | |
| 3 A | |
| 1.1 V to 3.5 V | |
| 600 mV to 1.25 V | |
| - 40 C | |
| + 85 C | |
| 1 uA | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Application: | Memory Termination Regulator, Notebooks, Telecom, Copiers and Printers |
| Brand: | Texas Instruments |
| Development Kit: | TPS51200EVM |
| Height: | 0.9 mm |
| Input Voltage, Max: | 3.5 V |
| Input Voltage, Min: | 1.1 V |
| Length: | 3 mm |
| Maximum Output Voltage: | 1.25 V |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 700 uA |
| Operating Supply Voltage: | 2.375 V to 3.5 V |
| Pd - Power Dissipation: | 1.92 W |
| Product Type: | Power Management Specialized - PMIC |
| Factory Pack Quantity: | 250 |
| Subcategory: | PMIC - Power Management ICs |
| Width: | 3 mm |
| Unit Weight: | 0.000917 oz |
