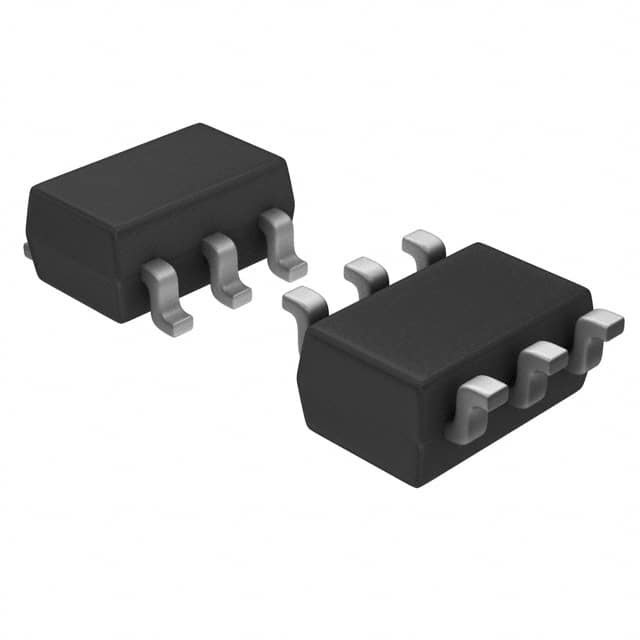

TPS2552DBVR-1 / SOT-23-6 / Power Switch ICs - Power Distribution
The TPS255x and TPS255x-1 power-distribution switches are intended for applications where precision current limiting is required or heavy capacitive loads and short circuits are encountered and provide up to 1.5 A of continuous load current. These devices offer a programmable current-limit threshold between 75 mA and 1.7 A (typical) through an external resistor. Current-limit accuracy as tight as ±6% can be achieved at the higher current-limit settings. The power-switch rise and fall times are controlled to minimize current surges during turnon and turnoff.
TPS255x devices limit the output current to a safe level by using a constant-current mode when the output load exceeds the current-limit threshold. TPS255x-1 devices provide circuit breaker functionality by latching off the power switch during overcurrent or reverse-voltage situations. An internal reverse-voltage comparator disables the powerswitch when the output voltage is driven higher than the input to protect devices on the input side of the switch. The FAULT output asserts low during overcurrent and reverse-voltage conditions.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Power Switch ICs - Power Distribution |
| USB Switch | |
| 1 Output | |
| 1.5 A | |
| 75 mA to 1.7 A | |
| 85 mOhms | |
| 3 ms | |
| 3 ms | |
| 2.5 V to 6.5 V | |
| - 40 C | |
| + 85 C | |
| SMD/SMT | |
| SOT-23-6 | |
| TPS2552-1 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Product: | USB Current Limited Power Switches |
| Product Type: | Power Switch ICs - Power Distribution |
| Factory Pack Quantity: | 3000 |
| Subcategory: | Switch ICs |
| Supply Voltage - Max: | 6.5 V |
| Supply Voltage - Min: | 2.5 V |
| Unit Weight: | 0.001376 oz |
