TPS54620RHLR / Switching Voltage Regulators 4.5-17Vin,6A Syn Step Down Cnvrtr
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |

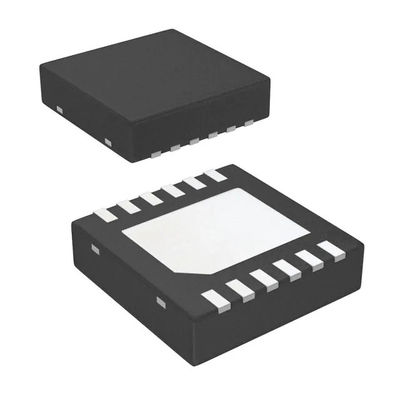

| VQFN-14 | |
| Buck | |
| 3.3 V | |
| 6 A | |
| 1 Output | |
| 4.5 V | |
| 17 V | |
| 2 uA | |
| 480 kHz | |
| - 40 C | |
| + 150 C | |
| TPS54620 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Development Kit: | TPS54620EVM-374 |
| Input Voltage: | 4.5 V to 17 V |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 600 uA |
| Product: | Voltage Regulators |
| Product Type: | Switching Voltage Regulators |
|
Factory Pack Quantity: |
3000 |
| Subcategory: | PMIC - Power Management ICs |
| Supply Voltage - Min: | 4.5 V |
| Tradename: | SWIFT |
| Type: | Voltage Converter |
| Unit Weight: | 0.001136 oz |
DESCRIPTION
The TPS54620 in thermally enhanced 3.50 mm × 3.50 mm QFN package is a full featured 17-V, 6-A, synchronous, step-down converter which is optimized for small designs through high efficiency and integrating the high-side and low-side MOSFETs. Further space savings are achieved through current mode control, which reduces component count, and by selecting a high switching frequency, reducing the footprint of the inductor.
The output voltage start-up ramp is controlled by the SS/TR pin which allows operation as either a standalone power supply or in tracking situations. Power sequencing is also possible by correctly configuring the enable and the open-drain power good pins.
Cycle-by-cycle current limiting on the high-side FET protects the device in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. There is also a low-side sinking current limit that turns off the low-side MOSFET to prevent excessive reverse current. Thermal shutdown disables the part when die temperature exceeds thermal shutdown temperature.
