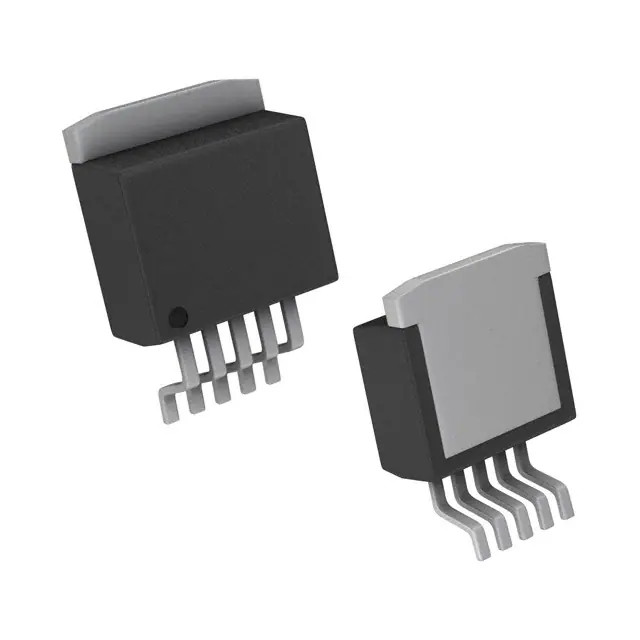

LM2595S-ADJ/NOPB / Switching Voltage Regulators 150 KHZ 1A STEP-DOWN VLTG REG
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Switching Voltage Regulators |
| RoHS: | Details |
| SMD/SMT | |
| TO-263-5 | |
| Buck | |
| 1.2 V to 37 V | |
| 1 A | |
| 1 Output | |
| 4.5 V | |
| 40 V | |
| 5 mA | |
| 150 kHz | |
| - 40 C | |
| + 125 C | |
| LM2595 | |
| Tube | |
| Brand: | Texas Instruments |
| Input Voltage: | 4.5 V to 40 V |
| Moisture Sensitive: | Yes |
| Operating Supply Current: | 5 mA |
| Product Type: | Switching Voltage Regulators |
| Shutdown: | Shutdown |
|
Factory Pack Quantity: |
45 |
| Subcategory: | PMIC - Power Management ICs |
| Supply Voltage - Min: | 4.5 V |
| Tradename: | SIMPLE SWITCHER |
| Type: | Step Down Voltage Regulator |
| Unit Weight: | 0.056128 oz |
DESCRIPTION
The LM2595 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 1-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixedfrequency oscillator.
