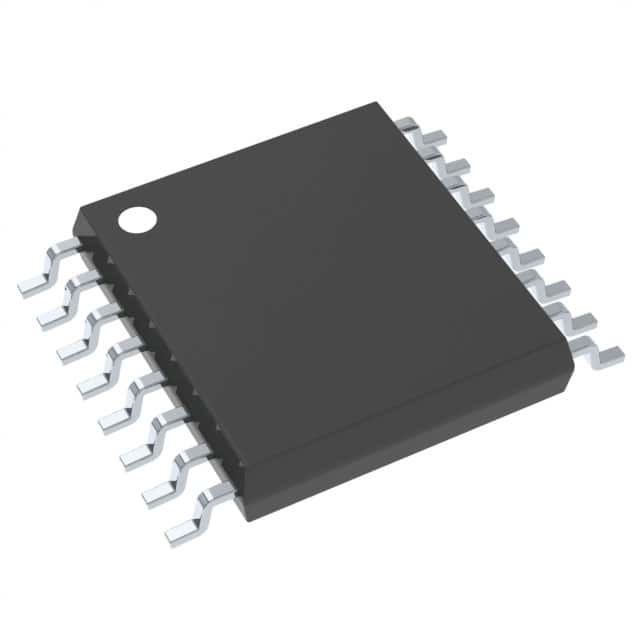

DAC7565IAPWR / TSSOP-16 / Data Converter ICs
The DAC7565 is a low-power, voltage-output.four-channel,12-bit digital-to-analog converter (DAC)The device includes a 2.5V, 2ppm/C internalreference (enabled by default), giving a full-scaleoutput voltage range of 2.5V. The internal referencehas an initial accuracy of 0.02% and can source up to20mA at the VREFH/VREFOUT pin. The device ismonotonic,provides very good linearity, andminimizes undesired code-to-code transient voltagesglitch). The DAC7565 uses a versatile 3-wire seriainterface that operates at clock rates up to 50MHzThe interface is compatible with standard SPITMQSPITM,Microwire Tm, and digital signal processor(DSP) interfaces.
The DAC7565 incorporates a power-on-reset circuitthat ensures the DAC output powers up at eitherzero-scale or mid-scale until a valid code is written tothe device. The device contains a power-downfeature, accessed over the serial interface thatreduces the current consumption of the device to1.3uA at 5V. Power consumption is 2.9mW at 3Vreducing to 1.5uW in power-down mode. The lowpower consumption, internal reference, and smalfootprint make this device ideal for portable.battery-operated equipment.
The DAC7565 is drop-in and functionally compatiblewith the DAC8165 and DAC8565,and functionallycompatible with the DAC7564.DAC8164 andDAC8564. All these devices are available in aTSSOP-16 package.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Digital to Analog Converters - DAC |
| DAC7565 | |
| 12 bit | |
| 1 Channel | |
| Voltage | |
| 3-Wire, DSP, Microwire, QSPI, SPI | |
| - 40 C | |
| + 105 C | |
| SMD/SMT | |
| TSSOP-16 | |
| Reel | |
| Architecture: | Resistor-String |
| Brand: | Texas Instruments |
| Features: | Reset to Mid-Scale |
| Gain Error: | 0.2 % FSR |
| Height: | 1.15 mm |
| Moisture Sensitive: | Yes |
| Number of Converters: | 1 Converter |
| Operating Supply Voltage: | 2.7 V to 5.5 V, 1.8 V to 5.5 V |
| Power Consumption: | 2.9 mW |
| Product Type: | DACs - Digital to Analog Converters |
| SNR - Signal to Noise Ratio: | 81 dB |
| Factory Pack Quantity: | 2000 |
| Subcategory: | Data Converter ICs |
| Supply Voltage - Max: | 5.5 V |
| Supply Voltage - Min: | 2.7 V |
| Unit Weight: | 0.002222 oz |
