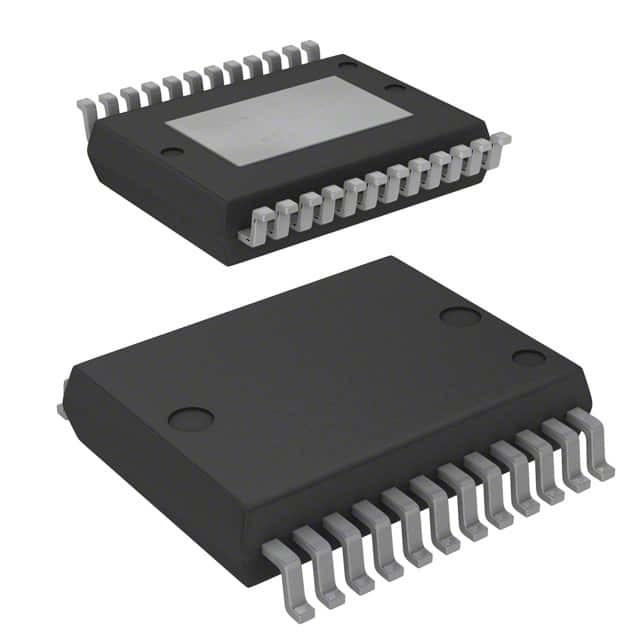

VNQ5160KTR-E / PowerSSO-24 EP / Power Management ICs
The VNQ5160K-E is a monolithic device made using STMicroelectronics VIPower™ M0-5 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table).
The device detects open-load condition in both on and off states, when STAT_DIS is left open or driven low. Output shorted to VCC is detected in the off-state. When STAT_DIS is driven high, the STATUS pin is in a high impedance condition.
Output current limitation protects the device in overload condition. In the case of long duration overload, the device limits the dissipated power to a safe level up to thermal shutdown intervention.
Thermal shutdown with automatic restart allows the device to recover normal operation as soon as a fault condition disappears.
| Product Attribute | Attribute Value |
|---|---|
| STMicroelectronics | |
| Product Category: | Power Switch ICs - Power Distribution |
| High Side | |
| 4 Output | |
| 1 A | |
| 5.4 A | |
| 160 mOhms | |
| 15 us | |
| 15 us | |
| 4.5 V to 36 V | |
| - 40 C | |
| + 150 C | |
| SMD/SMT | |
| PowerSSO-24 EP | |
| VNQ5160K-E | |
| AEC-Q100 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | STMicroelectronics |
| Moisture Sensitive: | Yes |
| Product: | Load Switches |
| Product Type: | Power Switch ICs - Power Distribution |
| Factory Pack Quantity: | 1000 |
| Subcategory: | Switch ICs |
| Unit Weight: | 0.016579 oz |
