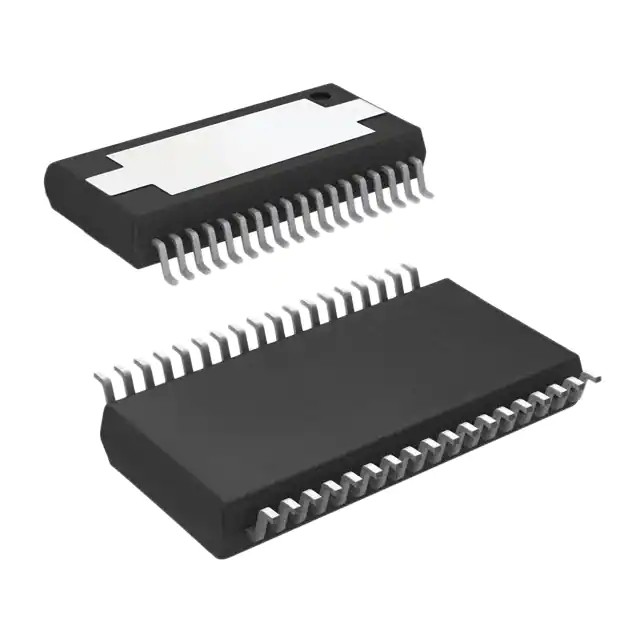

DRV8332DKDR / Motor / Motion / Ignition Controllers & Drivers Three Phase PWM Motor Driver
Features
• High-Efficiency Power Stage (up to 97%) With Low RDS(on) MOSFETs (80 mΩ at TJ = 25°C)
• Operating Supply Voltage up to 50 V (70-A Absolute Maximum)
• DRV8312 (Power Pad Down): up to 3.5-A Continuous Phase Current (6.5-A Peak)
• DRV8332 (Power Pad Up): up to 8-A Continuous Phase Current (13-A Peak)
• Independent Control of Three Phases
• PWM Operating Frequency up to 500 kHz
• Integrated Self-Protection Circuits Including Undervoltage, Overtemperature, Overload, and Short Circuit
• Programmable Cycle-by-Cycle Current Limit Protection
• Independent Supply and Ground Pins for Each Half Bridge
• Intelligent Gate Drive and Cross Conduction Prevention
• No External Snubber or Schottky Diode is Required
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Motor / Motion / Ignition Controllers & Drivers |
| RoHS: | Details |
| Fan / Motor Controllers / Drivers | |
| 3 Phase | |
| 0 V to 52.5 V | |
| 8 A | |
| 10.5 mA | |
| - 40 C | |
| + 85 C | |
| SMD/SMT | |
| HSSOP-36 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Features: | Integrated FETs |
| Moisture Sensitive: | Yes |
| Number of Outputs: | 3 Output |
| Operating Frequency: | 500 kHz |
| Output Voltage: | 3.3 V |
| Product Type: | Motor / Motion / Ignition Controllers & Drivers |
| Rds On - Drain-Source Resistance: | 220 mOhms |
| Series: |
DRV8332 |
| Factory Pack Quantity: | 500 |
| Subcategory: | PMIC - Power Management ICs |
| Unit Weight: | 0.112877 oz |
