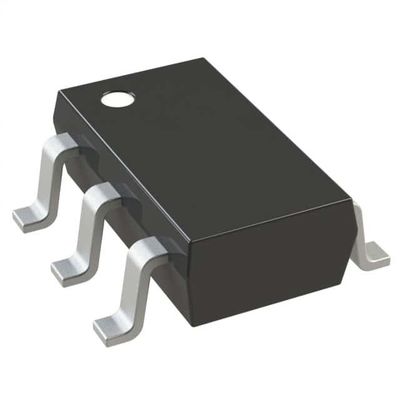

STWD100YNYWY3F / SOT-23-5 / Power Management ICs
Description
The STWD100 watchdog timer circuits are selfcontained devices which prevent system failures that are caused by certain types of hardware errors (such as, non-responding peripherals and bus contention) or software errors (such as a bad code jump and a code stuck in loop).
The STWD100 watchdog timer has an input, WDI, and an output, WDO . The input is used to clear the internal watchdog timer periodically within the specified timeout period, twd. While the system is operating correctly, it periodically toggles the watchdog input, WDI. If the system fails, the watchdog timer is not reset, a system alert is generated and the watchdog output, WDO , is asserted.
The STWD100 circuit also has an enable pin, EN , which can enable or disable the watchdog functionality. The EN pin is connected to the internal pull-down resistor. The device is enabled if the EN pin is left floating.
| Product Attribute | Attribute Value |
|---|---|
| STMicroelectronics | |
| Product Category: | Supervisory Circuits |
| Voltage Supervisory | |
| SMD/SMT | |
| SOT-23-5 | |
| 1 Input | |
| Active Low, Open Drain | |
| No Manual Reset | |
| Watchdog | |
| No Backup | |
| 210 ms | |
| 5.5 V | |
| - 40 C | |
| + 125 C | |
| STWD100 | |
| AEC-Q100 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | STMicroelectronics |
| Chip Enable Signals: | Chip Enable |
| Operating Supply Current: | 13 uA |
| Pd - Power Dissipation: | 320 mW |
| Power Fail Detection: | No |
| Product Type: | Supervisory Circuits |
| Factory Pack Quantity: | 3000 |
| Subcategory: | PMIC - Power Management ICs |
| Supply Voltage - Min: | 2.7 V |
| Unit Weight: | 0.002258 oz |
