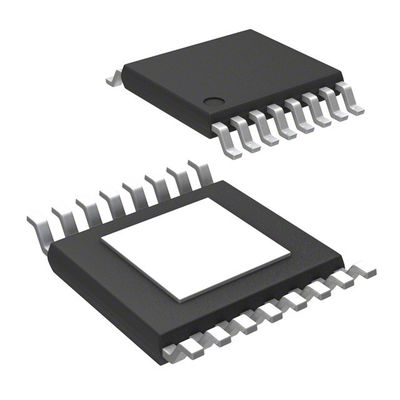

TPS26600PWPR / Hot Swap Voltage Controllers 4.2-V to 60-V, 150m&Omega
The TPS2660x devices are compact, feature rich high voltage eFuses with a full suite of protection features. The wide supply input range of 4.2 to 60 V allows control of many popular DC bus voltages. The device can withstand and protect the loads from positive and negative supply voltages up to ±60 V. Integrated back to back FETs provide reverse current blocking feature making the device suitable for systems with output voltage holdup requirements during power fail and brownout conditions. Load, source and device protection are provided with many adjustable features including overcurrent, output slew rate and overvoltage, undervoltage thresholds. The internal robust protection control blocks along with the high voltage rating of the TPS2660x helps to simplify the system designs for Surge protection.
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | Hot Swap Voltage Controllers |
| RoHS: | Details |
| Controllers & Switches | |
| 8.33E-02 | |
| 55 V | |
| 4.2 V | |
| 1 Channel | |
| 300 uA | |
| - 40 C | |
| + 125 C | |
| SMD/SMT | |
| HTSSOP-16 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Yes | |
| Brand: | Texas Instruments |
| Development Kit: | TPS26600-02EVM |
| Input / Supply Voltage - Max: | 55 V |
| Input / Supply Voltage - Min: | 4.2 V |
| Moisture Sensitive: | Yes |
| Product Type: | Hot Swap Voltage Controllers |
| Series: | TPS2660 |
|
Factory Pack Quantity: |
2000 |
| Subcategory: | PMIC - Power Management ICs |
| Unit Weight: | 0.002476 oz |
